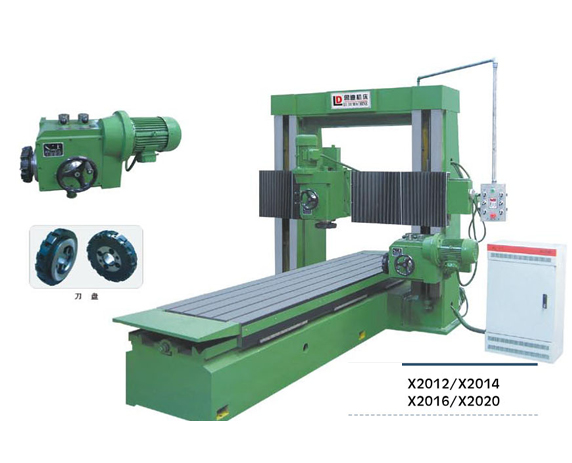

龍門銑床LMX2012
聯系電話：0632-3951282
歡迎訪問山東魯?shù)现毓C械有限公司官方網站！
0632-3951282
tzludi@126.com
主要技術參數 | Specification | X2012 | X2014 | X2016 | X2020 |
工作臺面積（長X寬）（mm) | Table size (length x width) | 2000x700 | 3000x800 | 4000x1100 | 4000x1500 |
最大加工寬度 | The maximum working width | 1250 | 1250 | 1600 | 2000 |
最大加工高度 | Maximum working height | 950 | 950 | 1000 | 1000 |
工作臺行程 | Table travel | 2300 | 3000 | 4000 | 4000 |
工作臺承重 | Table load | 3000 | 4000 | 6000 | 6000 |
側銑頭最大加工高度 | Maximum height of the side milling head | 800 | 800 | 800 | 800 |
側銑頭最大加工寬度 | The maximum working width side milling head | 1200 | 1200 | 1500 | 1900 |
垂直銑頭主軸錐度 | Vertical milling spindle taper | 7:24 NT50 | 7:24 NT50 | 7:24 NT50 | 7:24 NT50 |
側銳頭主軸錐度 | Side milling spindle taper | 7:24 NT50 | 7:24 NT50 | 7:24 NT50 | 7:24 NT50 |
主軸端面外徑 | Outside diameter of spindle nose | 128.57 | 128.57 | 128.57 | 128.57 |
主軸行程 | Spindle stroke | 200 | 200 | 120 | 120 |
主軸轉速范圍(r/m in) | Spindle speed range | 106-664 | 106-664 | 75-420 | 75-420 |
橫梁升降速度(mm/m in) | Beam lifting speed | 280 | 280 | 280 | 280 |
銑頭回轉角度 | Head rotation angle | ±45° | ±45° | ±45° | ±45° |
工作臺快速進給量(m m/m i n) | Rapid feed rate table | 1200 | 1200 | 1200 | 1200 |
工作臺進給級數 | Table feed progression | 變頻調速 | 變頻調速 | 變頻調速 | 變頻調速 |
工作臺慢速進給范圍(m m/m i n) | Bench slow feed range | 15-200 | 15-200 | 15-200 | 15-200 |
側銳頭進給速度(m m/m i n) | Side milling feed rate | 變頻調速 | 變頻調速 | 變頻調速 | 變頻調速 |
垂直銑頭橫進給速度(m m/m i n) | Infeed speed vertical milling head | 變頻調速 | 變頻調速 | 變頻調速 | 變頻調速 |
垂直銑頭電機功率 | Vertical milling head motor power | 4/5.5 | 4/5.5 | 5.5/7.5 | 5.5/7.5 |
側銑頭電機功率 | Side Head Motor Power | 4 | 4 | S.5/7.5 | S.5/7.5 |
工作臺進給電機功率 | Table feed motor power | 3 | 3 | 5.5 | 5.5 |
橫梁升降電機功率 | Lifting motor power beam | 1.5 | 1.5 | 1.5 | 1.5 |
橫梁平移電機功率 | Beam translational motor power | 0.75 | 0.75 | 1.1 | 1.1 |
側軸升降電機功率 | Side of the lift motor shaft power | 0.75 | 0.75 | 1.1 | 1.1 |
潤滑泵電機功率 | Lubrication pump motor power | 0.55 | 0.55 | 0.55 | 0.55 |
推薦刀盤直徑 | Recommended cutter diameter | 200/250 | 200/250 | 250/315 | 250/315 |
夕卜形尺寸（長X寬X高）（mm) | Dimensions (LxWxH) | 4000x2700x2400 | 5500x2700x2400 | 7100x2800x2800 | 7100x2800x3200 |
機床凈重（約）（kg) | Machine weight (about) | 5500 | 7000 | 13000 | 16500 |
